Omron -开关-D2HWBR223M

技术规格

	IP等级	IP67
	安装	Posts on right
	工作温度范围	-40 → +85°C
	差分	0.8mm
	执行器类型	Long Hinge Lever
	操纵力	0.5N
	机械寿命	1 x 106Ops
	端子类型	Pre-Wired Downwards
	触点容量	2 A @ 12V直流
	触点材料	Gold Alloy
	触点配置	SPST- NO
	超行程	2.5mm
	释放力	0.03N

详情

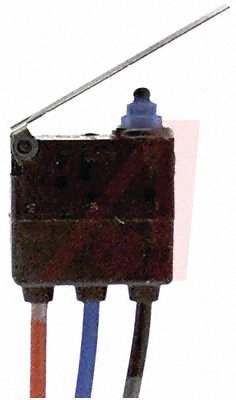

Ultra Subminiature Sealed Microswitch ( D2HW )

Smallest sealed snap action switch in the industry with a very long stroke for reliable ON/OFF action.

• RoHS compliant
  Extra long stroke
  Dimensions are 78% of conventional models
  PCB terminal versions have straight and right angled terminals
  Contact rating: 2A @ 12Vdc, 0.1A @ 125Vac
  Minimum Load: 1mA @ 5Vdc
  Contact configuration: SPDT
