Omron -开关-D2SWP2H

技术规格

	工作温度范围	-20 → +70°C
	差分	0.15mm
	执行器类型	Pin Plunger
	操纵力	1.8N
	机械寿命	1 x 106Ops
	端子类型	Solder
	触点容量	2 A @ 250V交流
	触点材料	Silver Alloy
	触点配置	SPDT
	超行程	0.4mm
	释放力	1.2N
	预行程	0.6mm

详情

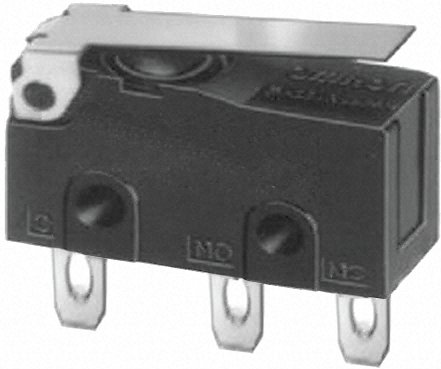

Sealed Miniature Microswitches

High quality sealed miniature microswitch in industry standard V4 housing

• Monoblock construction assures high sealing capability and is ideal for dusty places or where water is sprayed
  IEC IP50 rated (solder/pcb terminal), IEC IP67 rated (wire lead )
  RoHS compliant
  Contact rating: 3A@30Vdc/125Vac, 2A@250Vac
  Contact configuration: SPDT
  Operating temperature range: -40 to +80°C

• Approvals: UL, CSA, VDE
